meta-monitoring-chart

This is a meta-monitoring chart for GEL, GEM and GET. It should be installed in a separate namespace next to GEM, GEL or GET installations.

Note that this is pre-production software at the moment.

Preparation

Create a values.yaml file based on the default one.

1. Add or remove the namespaces to monitor in the namespacesToMonitor setting

2. Set the cluster name in the clusterName setting. This will be added as a label to all logs, metrics and traces.

3. Create a meta namespace.

Local and cloud modes

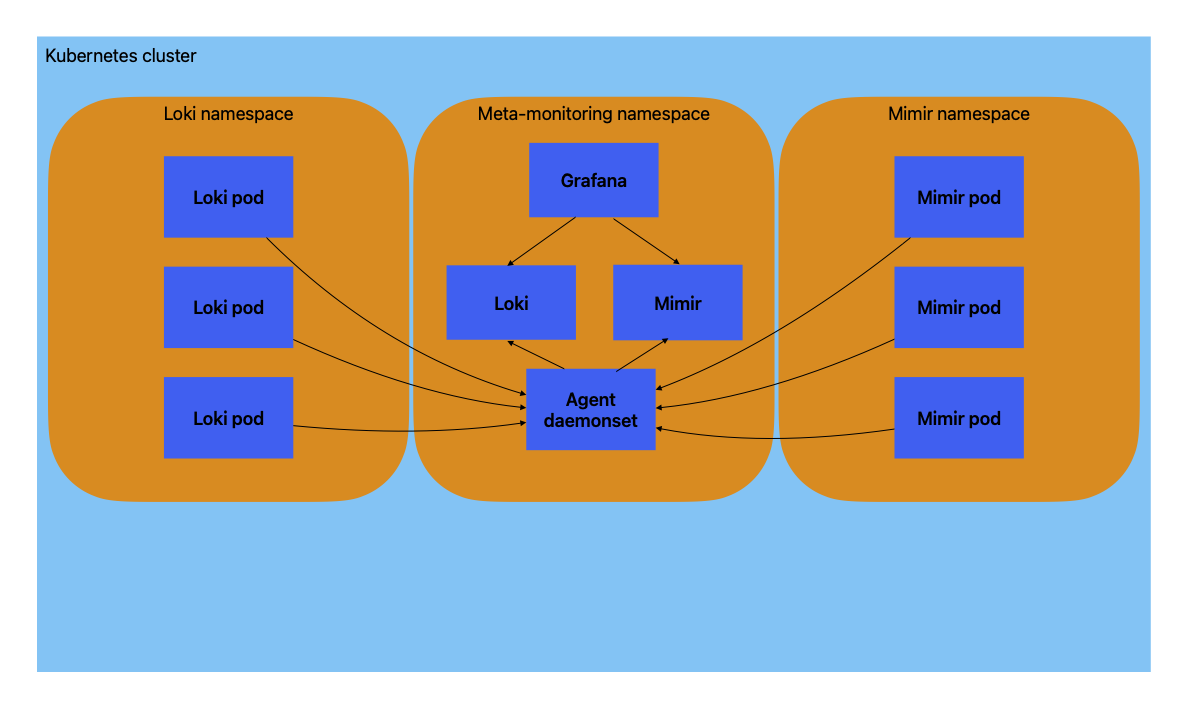

The chart has 2 modes: local and cloud. In the local mode logs, metrics and/or traces are sent to small Loki, Mimir and Tempo installations running in the meta-monitoring namespace.

To enable local mode set local.<logs|metrics|traces>.enabled to true.

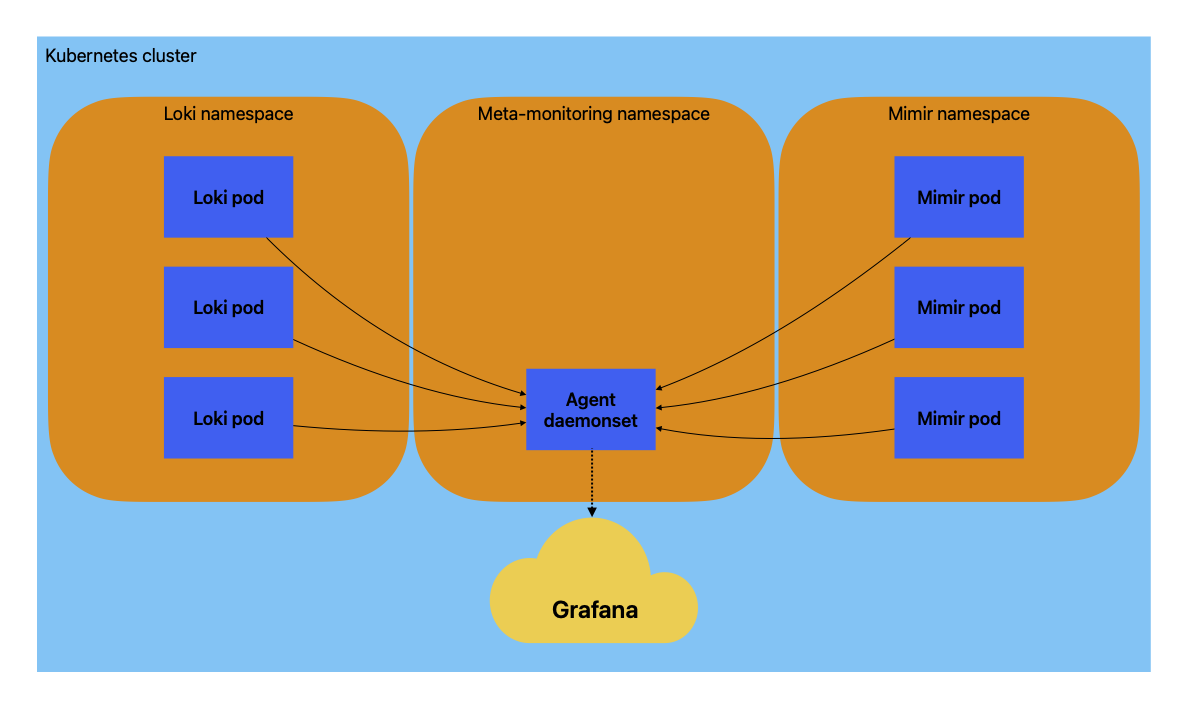

In the cloud mode the logs, metrics and/or traces are sent to Grafana Cloud.

To enable cloud mode set cloud.<logs|metrics|traces>.enabled to true. The endpoint, username and password settings for your Grafana Cloud logs, metrics and traces instances have to be filled in as well.

Both modes can be enabled at the same time.

Installation

helm install -n meta --skip-crds -f values.yaml meta ./charts/meta-monitoring

If the platform supports CRDs the --skip-crds option can be removed. However the CRDs are not used by this chart.

For more instructions including how to update the chart go to the installation page.

Supported features

• Specify which namespaces are monitored
• Specify if logs, metrics or traces should be enabled for cloud or local
• Specify the cluster name used for the logs, metrics and traces
• Specify PII regexes that are applied to logs before they are sent to Loki (cloud or local). The capture group in the regex is replaced with *****.
• a Grafana instance is installed (when local mode is used) with the relevant datasources installed. The following dashboards are installed:
  • logs dashboards
  • metrics dashboards
  • traces dashboards
  • agent dashboards
• Retention is set to 24 hours

Most of these features are enabled by default. See the values.yaml file for how to enable/disable them.

Caveats

• The loki.source.kubernetes component of the Grafana Agent is used to scrape Kubernetes log files. This component is marked experimental at the moment.
• This has not been tested on Openshift yet.
• The underlying Loki, Mimir and Tempo are at the default size installed by the Helm chart. This might need changing when monitoring bigger Loki, Mimir or Tempo installations.
• MinIO is used as storage at the moment with a limited retention. At the moment this chart cannot be used for monitoring over longer periods.
• Agent self monitoring is not done at the moment.

Developer help topics

• update dependencies
